Gates

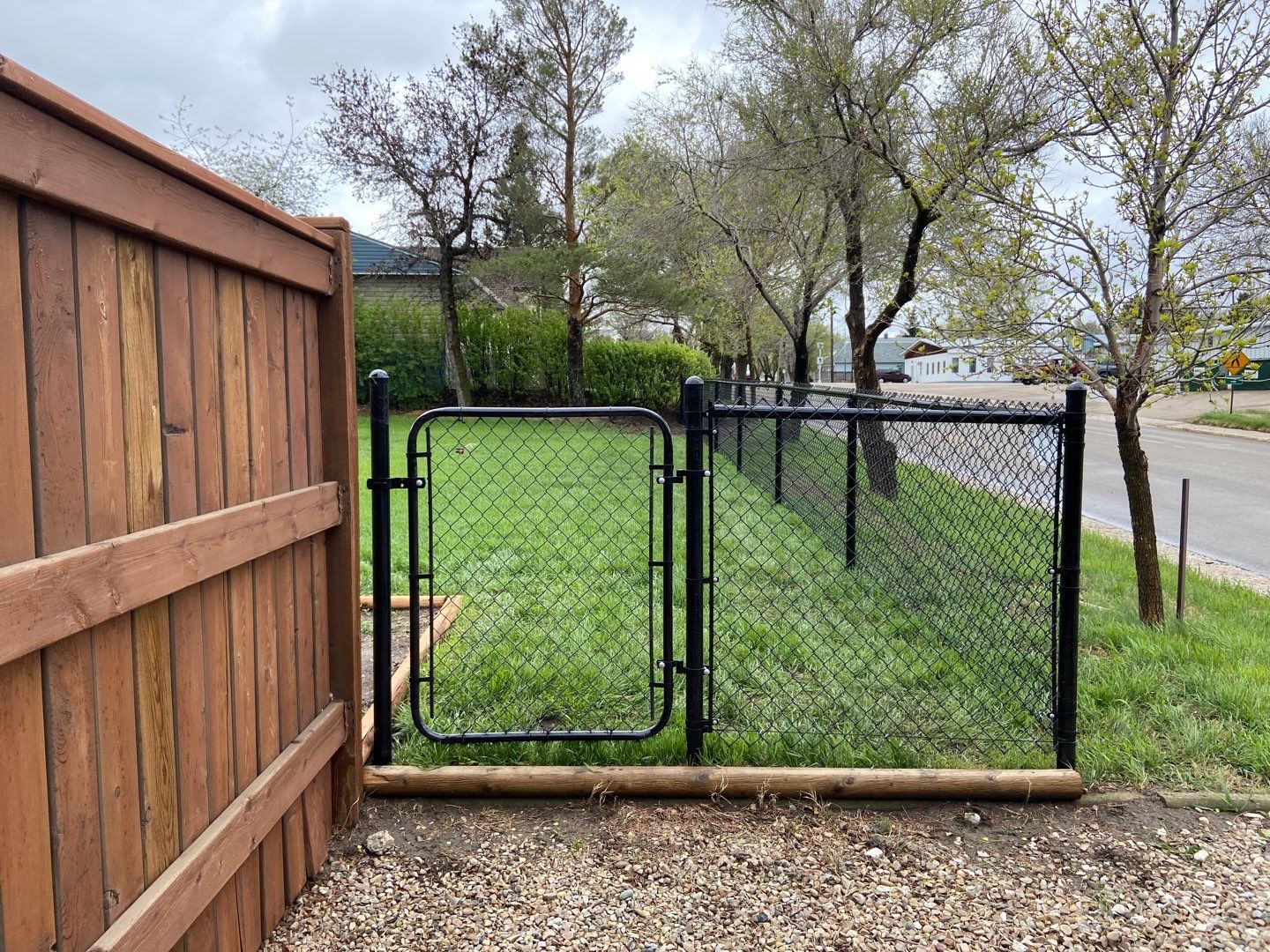

Bent tube gates are an economical and functional solution for providing easy access to your fenced area. This style of gate is most popular in DIY fence packages. They are readily available to fit opening sizes ranging from 32 to 60 inches and in all standard residential heights of 3 to 6 feet. The standard opening size is 44 inches but any size can be manufactured for your needs. Gates (frame, mesh, hardware) are manufactured in five standard colours: Galvanized, Black, White, Brown or Green. One consideration for this style of gate is that the rounded corners do not offer the same degree of enclosure as the square corners of a welded gate. In some cases, small animals can squeeze through the space between the post and the bottom rounded gate corner.

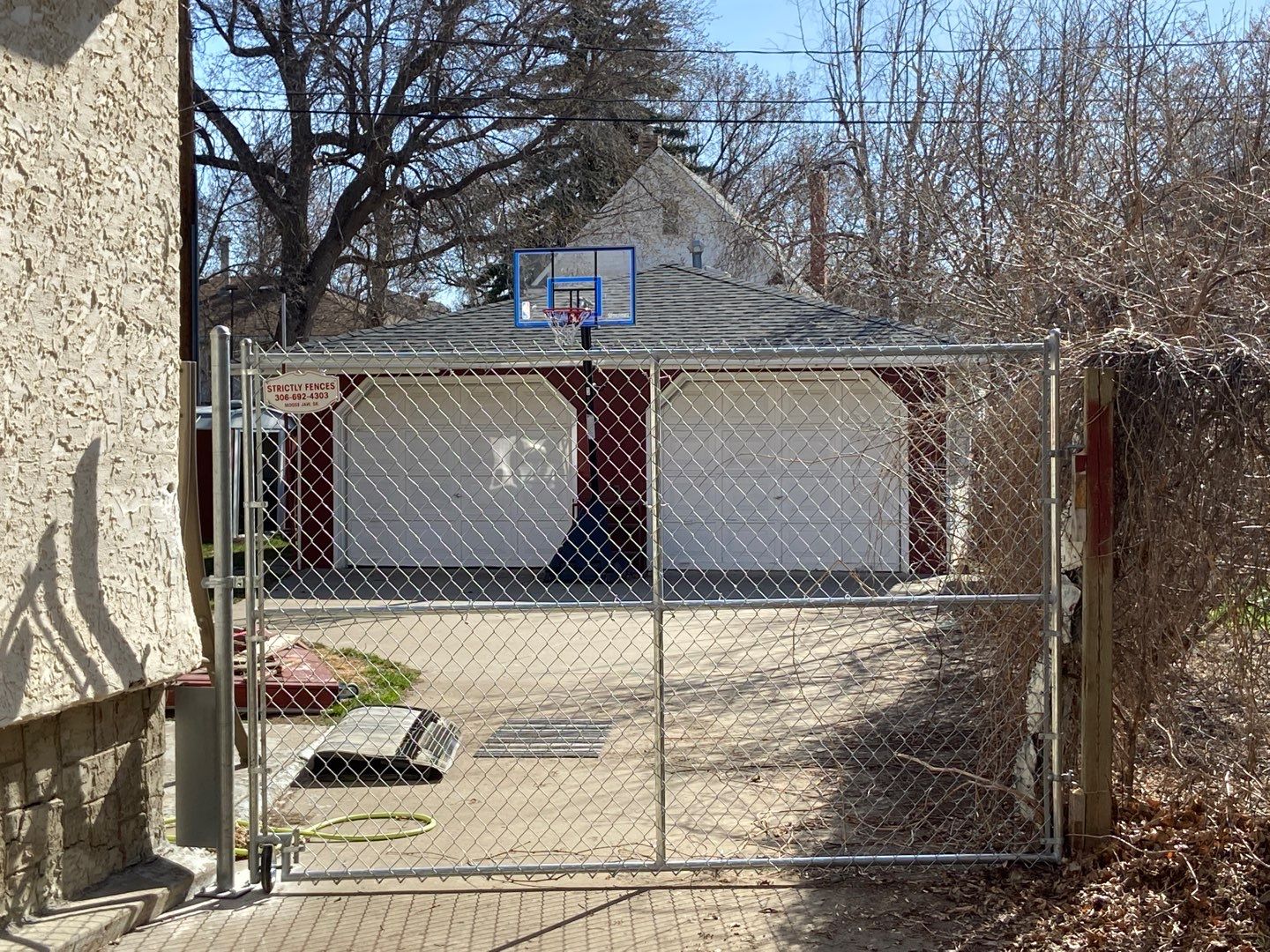

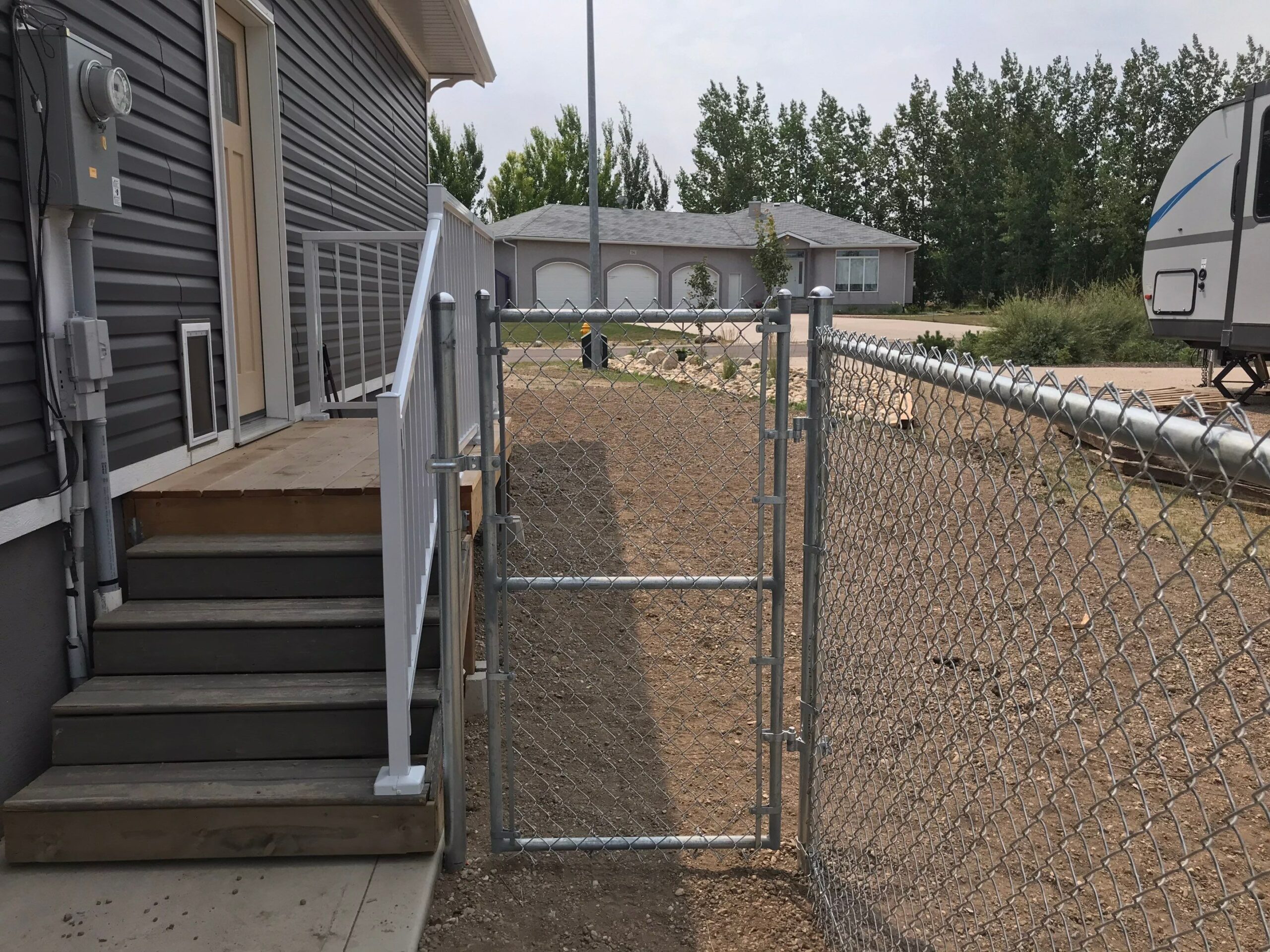

Welded Single Swing gates are the standard for all Strictly Fences installations due to the strength of an all welded gate and the added security of square corners. Single Swing gates are available for large opening sizes up to 20 feet and are built to match all fence heights. The standard opening size is 42 inches but any size can be made to fit your needs. Gates (frame, mesh, hardware) are manufactured in five standard colors: Galvanized, Black, White, Brown or Green. Welded gates offer an added degree of security due to the square corner construction that reduces the space between the posts and the bottom gate corners. This added feature is sure to keep even the smallest of pets safely within the confines of your yard.

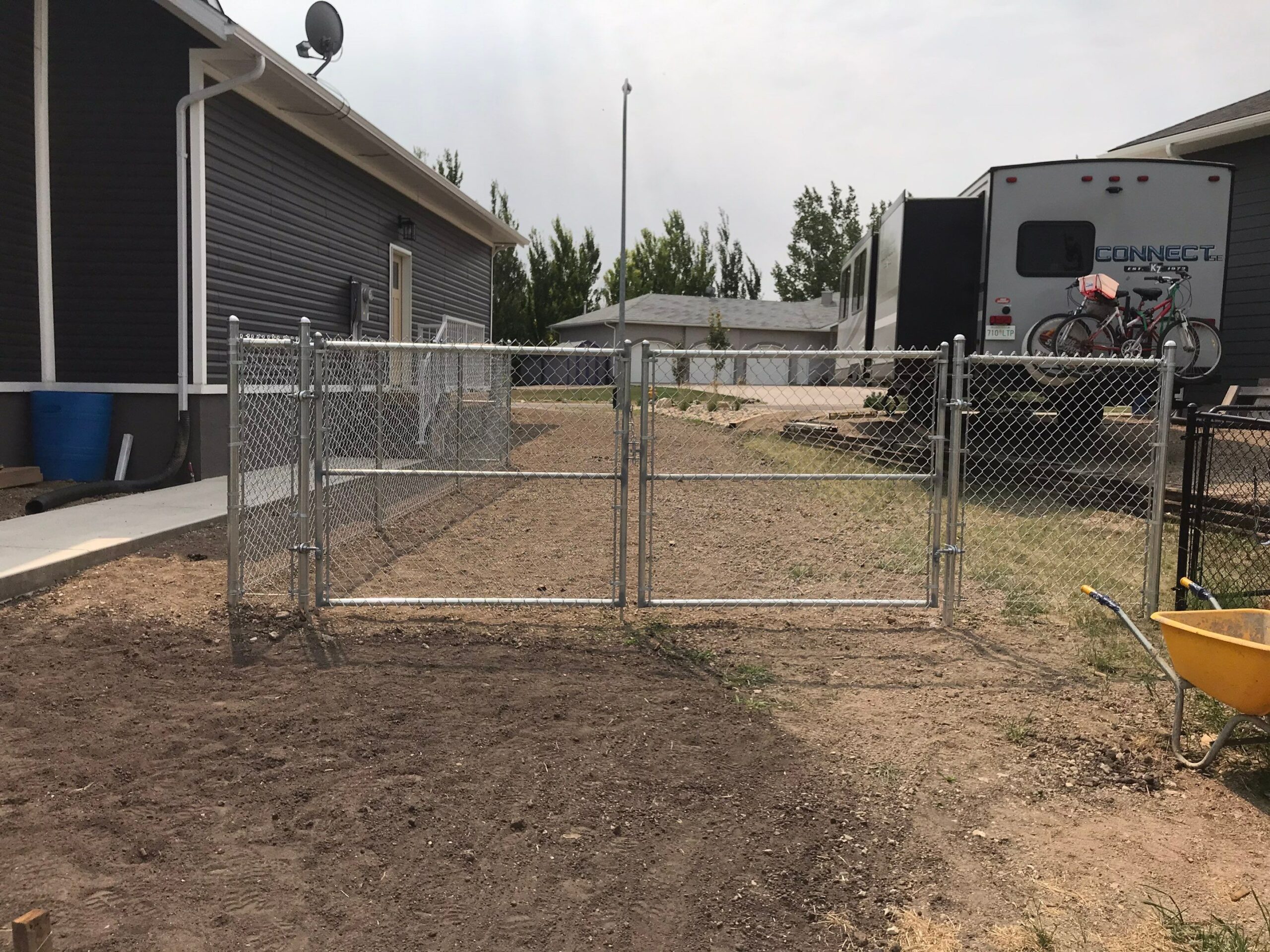

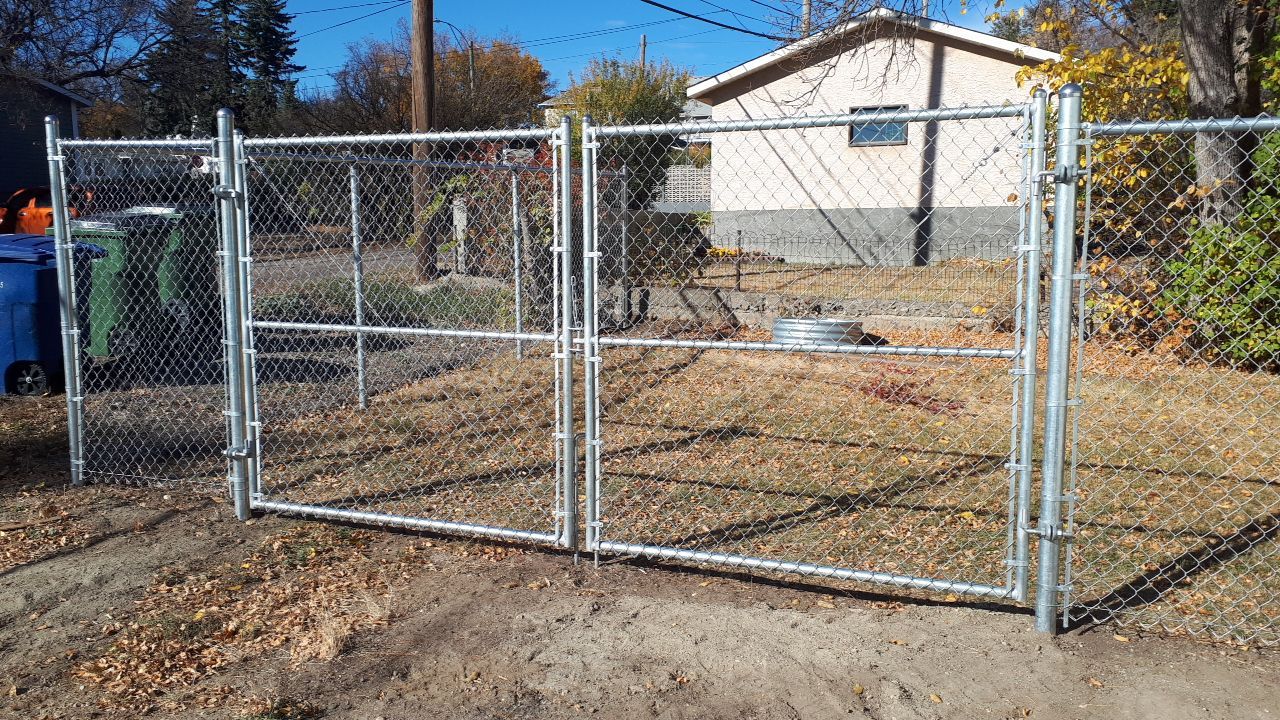

Welded Double Swing Gates are an economical solution for securing larger openings such as driveways and trailer parking pads. The two gate panels, which form the double swing gate, allow for less opening space than a long single gate and allow for partial opening if full access is not required. Double Swing gate are available for large opening sizes up to 40 feet (20 feet each side) and to match all fence heights. Gates (frame, mesh, hardware) are manufactured in five standard colors: Galvanized, Black, White, Brown or Green. Double swing gates come with a welded on drop pin and chain for locking the two panels together as well as a foot bolt (cane bolt) to secure one panel into the ground surface. Welded gates offer an added degree of enclosure due to the square corner construction that reduces the space between the posts and the bottom gate corners.

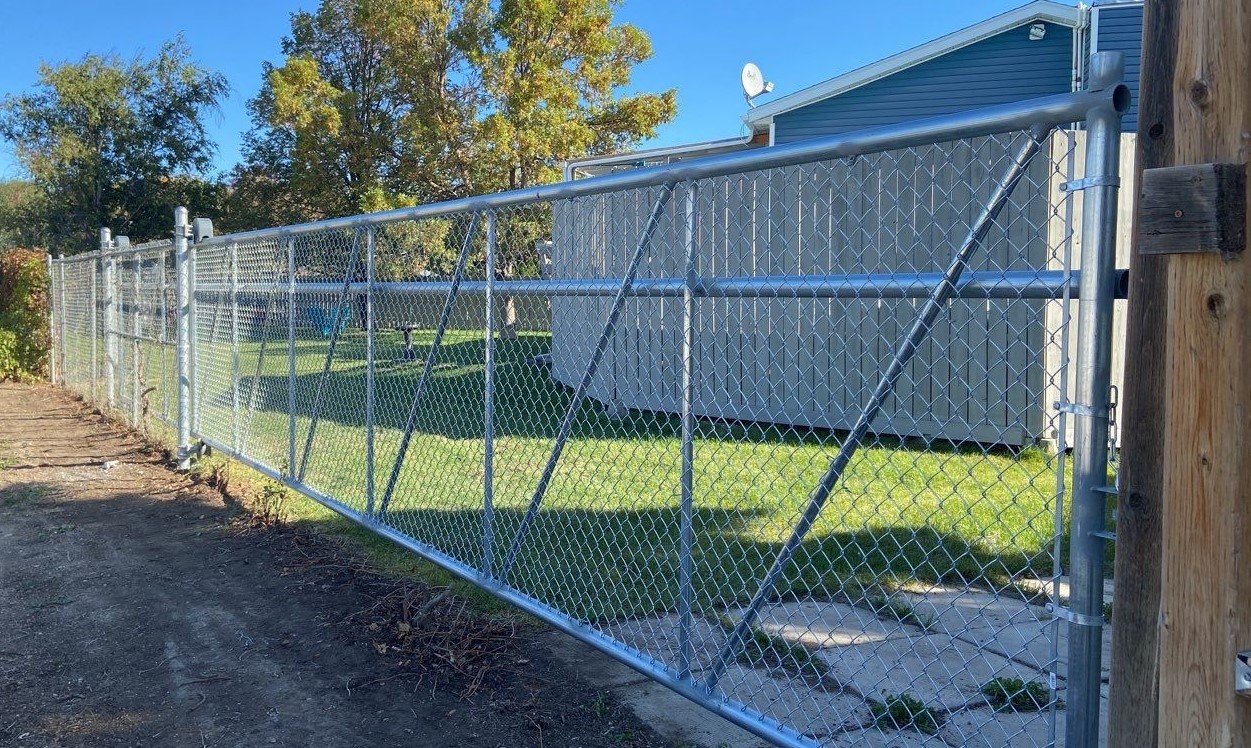

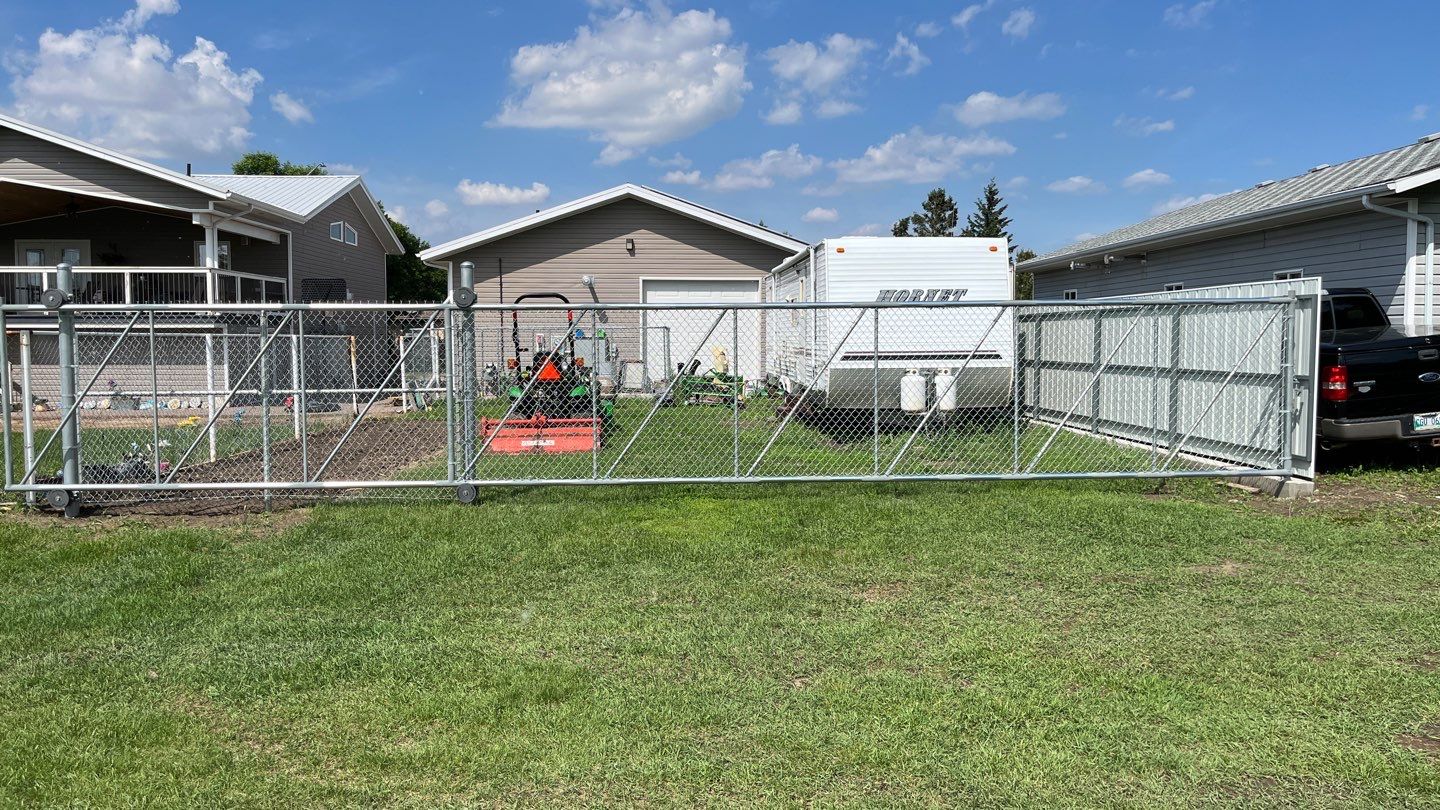

Slide Cantilever Gates are optimal for larger openings where the arc of the swing gate will interfere with obstructions and in applications requiring automatic gate operators. The operation of Cantilever Gates is based on a gate panel that slides through the gate opening in a linear motion fully supported above ground and between two counter balance posts each with a top and bottom roller assembly. Gate panels are typically manufactured to an overall length of “1.5 times the opening size plus 1 foot” so as to provide a counter balance section for support between the two counter balance posts. Note that there must be an adequate length of fence or an open clear line on the outside of the counter balance posts for the gate panel to slide into the fully open position. Cantilever gates are available to match all fence heights and in opening sizes up to 30 feet as a single slide (60 feet as a double slide). Gates are manufactured from a welded galvanized steel construction and available in five standard colors: Galvanized, Black, White, Brown or Green. Functional requirements and site layout should always be considered before selecting your style of gate.
